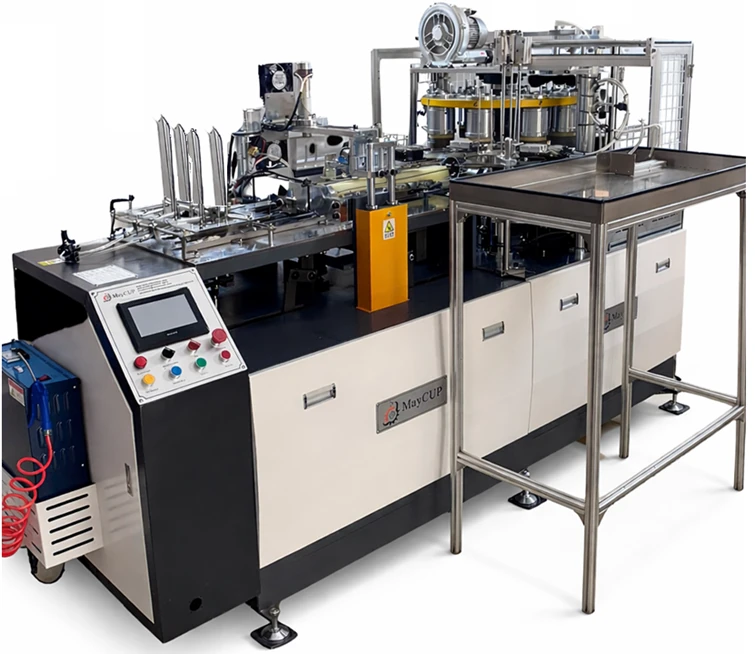

MayCUP MYC80C
Forming machine for the production of soup, salad, ice cream bowls and cardboard boxes.
Check out the model →- Home
- Machines
- Bowl and Box Machines
- MayCUP MYC80S Bowl and Box Machines

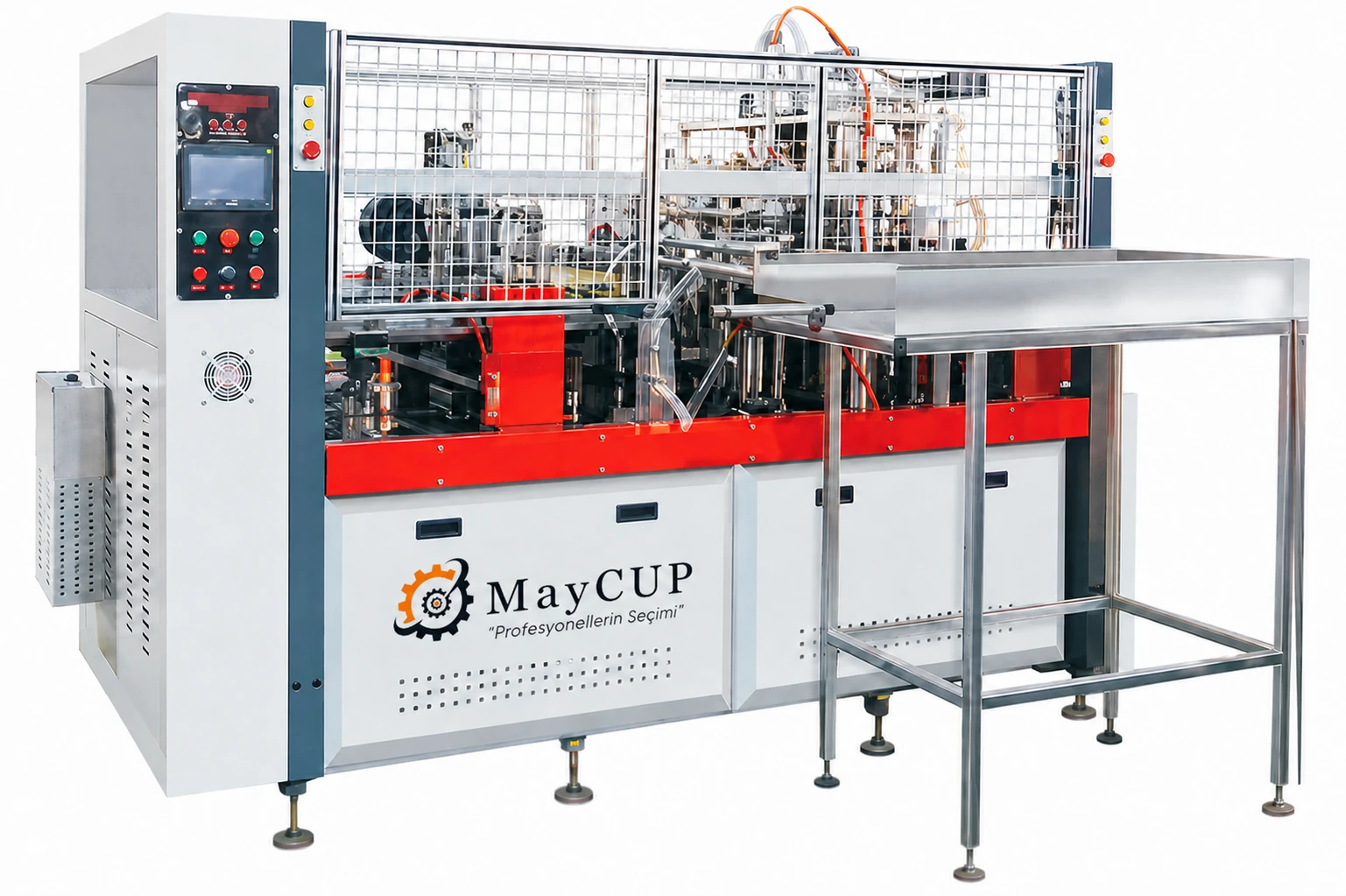

MayCUP MYC80S production machine
It is a fully automatic cardboard bowl machine developed for the production of 20–40 oz salad bowls and Döner Boxes. Regular production capacity of 40–60 pieces/minute; It is supported by PLC control, servo base paper feeding and automatic hydraulic base lifting system.
20–40 oz 40–60 pcs/minTechnical information is clearAll measurement, speed, power and system information on the same page
Installation and actual production testingThe machine is commissioned at your facility
Operator trainingUse, adjustment, cleaning and basic maintenance are explained.
After-sales technical supportDirect access to the team that knows the machine
FULL TECHNICAL INFORMATION
MayCUP MYC80S technical specifications
It is a fully automatic cardboard bowl machine developed for the production of 20–40 oz salad bowls and Döner Boxes. Regular production capacity of 40–60 pieces/minute; It is supported by PLC control, servo base paper feeding and automatic hydraulic base lifting system.
Mold Size Range20–40oz
Regular Production Rate40–60 pieces/min. / 2,400–3,600 pieces/hour
Engine Typeinverter
Total Power16.8 kW
Air Pressure Requirement
Dimension2850×1400×2050mm
Processable Paper Weight140–350 g/m² PE
Control TypePLC control, full automation
COMPLETE TECHNICAL TABLE
All technical specifications
| Raw materials | Single/Double PE |
|---|---|
| Processable Paper Weight | 140–350 g/m² PE |
| Working Voltage | 380V 50Hz |
| Engine Type | inverter |
| Air Pressure Requirement | |
| Chassis Type | Reinforced chassis |
| Powertrain Type | Extra hardened gear and shaft system |
| Side Paper Suction System | Suction with 4 suction cups |
| Lubrication System | Automatic lubrication and filtering system |
| Silicone Lubrication System | Automatic |
| Base Paper Waste Cutter with Conveyor | Including |
| Base Paper Feeding | servo electronic motor |
| Security Framework | Yes |
| Mold Size Range | 20–40oz |
| Side Paper Pasting | Ultrasonic |
| Side Paper Preheating System | Yes, 1 piece |
| Regular Production Rate | 40–60 pieces/min. / 2,400–3,600 pieces/hour |
| Total Power | 16.8 kW |
| Weight | 3,200kg |
| Dimension | 2850×1400×2050mm |
| Number of Bowl Molds | 8 aluminum bowl molds |
| Base Adhesive Number of Nests | 1 snail type and 2 powerful ceramic heaters; toplam 4 adet |
| Control Type | PLC control, full automation |
| Collection System | Robot arm / Blowing system (optional) |
| Base Paper Removal System | Yes |
Speed information: The values are not maximum test speeds, but are valid under suitable material, correct adjustment and regular maintenance conditions. are regular production rates. Maximum speeds may be higher. Actual production speed may vary depending on product size and material properties.
Technical specifications are reconfirmed in the written offer according to product and project conditions. Optional equipment is determined according to the scope of the offer.
COMPATIBLE PRODUCTION ORDER
The machine is with its original mold and control system prepared together
The parts of the machine, electrical system, mold and control system are prepared in harmony with each other. Once the production settings are completed, it is tested with the selected product and real raw material.
Measurement and setting consistency in molds
The new machine is tested under real production conditions after installing the original die set and completing centering, heat, pressure, feeding and timing settings. These values constitute the factory default settings of the machine.
In this way, the risk of loss of adjustment, decrease in production speed, unplanned stoppage and increase in wastage that can be caused by an incompatible mold change is reduced. Production progresses more regularly and it becomes easier to control costs.
SAME PRODUCT GROUP
Related machines compare
Bowl and Box Machines

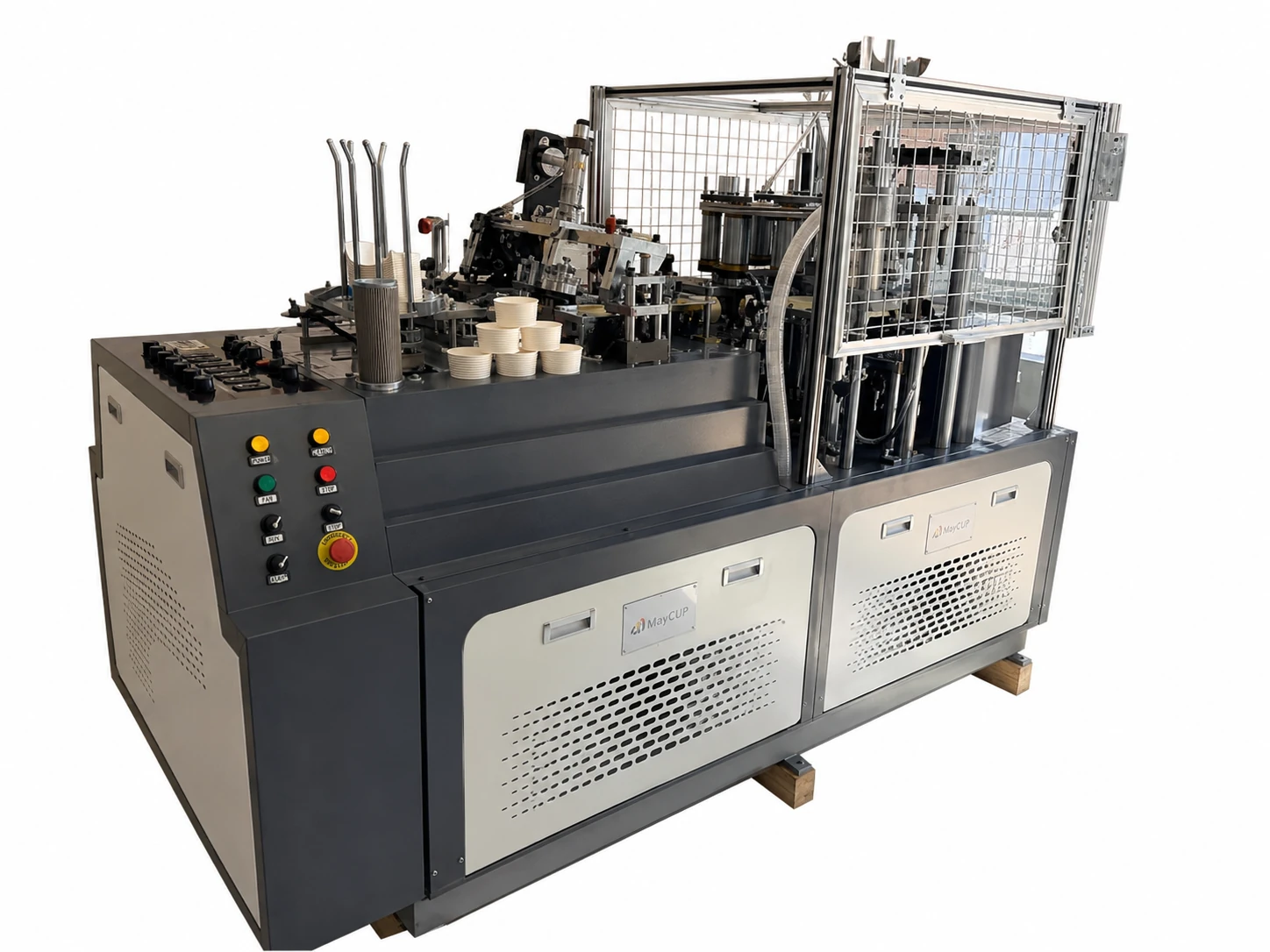

MayCUP MYC100D
