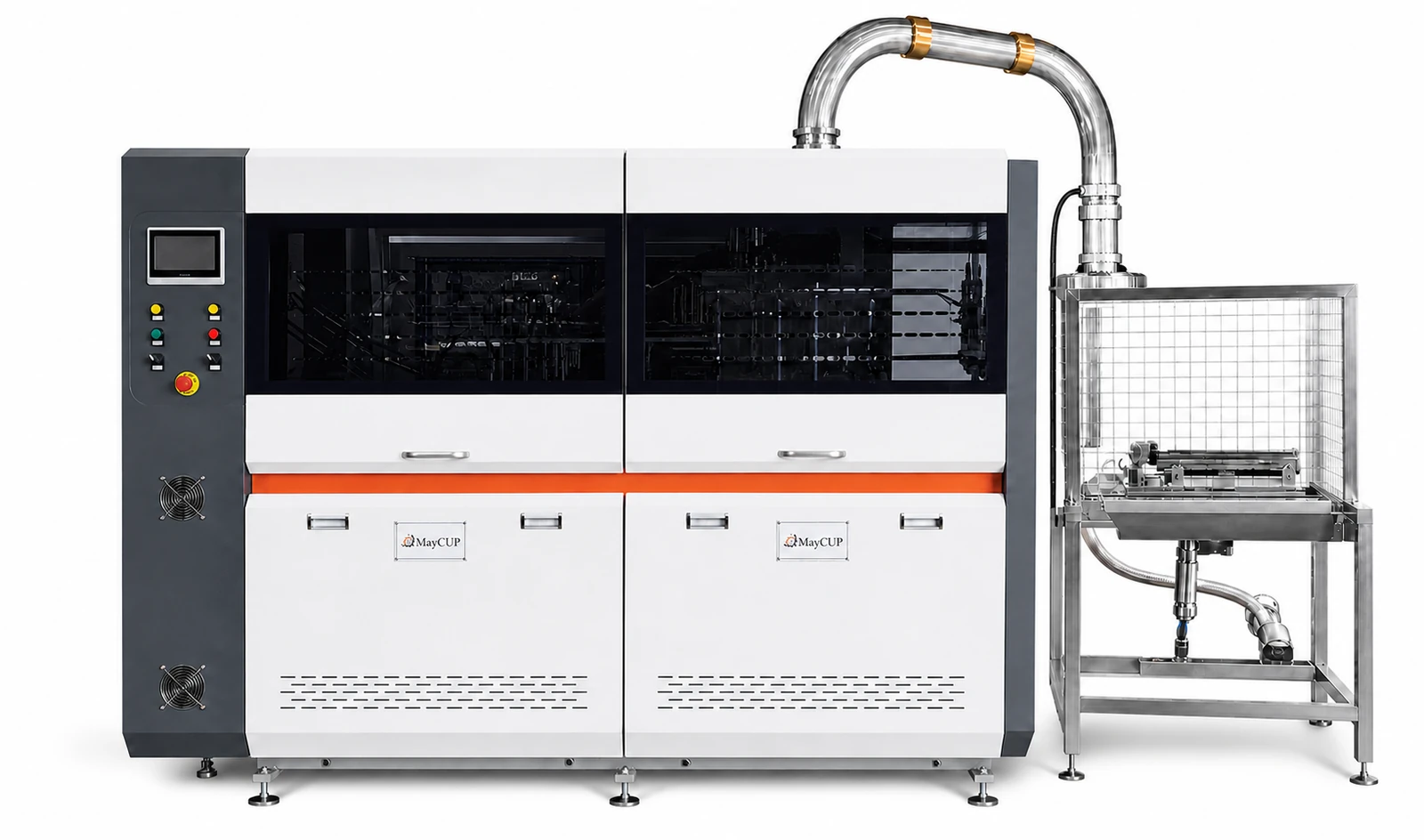

MayCUP MYC180 paper cup machine
With its seven servo motors and strong body, it focuses on maintaining order and control in high-speed production; It offers a strong production infrastructure to facilities aiming for high capacity.
130–160 pcs/minSpecifications are clearSpeed, product range, engine, mold and compressor information
Critical parts capabilityTechnical structure that can determine and produce the right part
On-site installation and trainingTesting and practical operator training with real raw materials
One-stop production planMachinery, equipment, raw materials, installation and support
FULL TECHNICAL INFORMATION
MayCUP MYC180 technical specifications
MYC180; It was developed for high-speed production with a product range of 2–16 oz, regular capacity of 130–160 cups/minute, seven full servo motors, PLC-controlled full automation, double mouth crimping and faulty cup sorting system.
Mold Size Range2–16oz
Regular Production Rate130–160 pieces/min / 7,800–9,600 pieces/hour
Engine Type7 full servos
Total Power16 kW (8 kW avg.)
Air Pressure Requirement0.6 MPa · 0.5 m³/min
Machine Size2700×1200×1800mm
Processable Paper Weight150–350 g/m² PE
Control TypePLC control, full automation
COMPLETE TECHNICAL TABLE
All technical specifications
| Mold Size Range | 2–16oz |
|---|---|
| Side Paper Pasting | Ultrasonic |
| Side Paper Preheating System | Yes · 2 pieces |
| Processable Paper Weight | 150–350 g/m² PE |
| Regular Production Rate | 130–160 pieces/min / 7,800–9,600 pieces/hour |
| Working Voltage | 380V 50Hz |
| Total Power | 16 kW (8 kW avg.) |
| Engine Type | 7 full servos |
| Weight | 3,000kg |
| Machine Size | 2700×1200×1800mm |
| Air Pressure Requirement | 0.6 MPa · 0.5 m³/min |
| Number of Cup Molds | |
| Side Paper Suction System | Suction with 3 XL suction cups |
| Base Adhesive Number of Nests | 1 air-assisted, 2 powerful ceramic heaters, 4 in total |
| Automatic Lubrication System | Automatic lubrication, greasing and filtering |
| Side Paper Silicone Lubrication System | Automatic |
| Control Type | PLC control, full automation |
| Base Paper Waste Cutter with Conveyor | Including |
| Base Paper Feeding | Full servo electric motor |
| Security Framework | full |
| Mouth Rolling System and Number of Tables | 2 |
| Remote Access via Wi-Fi | Yes |
| Sorting Faulty Glasses | Yes |
Speed information: The values are not maximum test speeds, but are valid under suitable material, correct adjustment and regular maintenance conditions. are regular production rates. Maximum speeds may be higher. Actual production speed may vary depending on product size and material properties.
Technical specifications are reconfirmed in the written offer according to product and project conditions. Optional equipment is determined according to the scope of the offer.
ACTUAL WORK RECORDS
Check out machine working videos
Watch the MayCUP MYC180 model in action in real installation and production footage.
FROM TECHNICAL SPECIFICATION TO PRODUCTION SUPPORT
Machine knowledge, installation, training and technical support in one place
See technical specifications clearly; Get access to critical parts, on-site installation, operator training and startup needs from the same team.
Reach the source when you need parts
Ability to produce critical parts and know their technical dimensions; It makes it easier to identify the right part, plan maintenance and maintain production continuity.
Receive the machine ready for production
Installation, connection checks and testing with actual raw material are completed at your facility. Your operator learns usage, adjustment, cleaning and basic maintenance on the machine.
Reduce missing items and supply confusion
Machinery, molds, auxiliary equipment, facility connections, initial raw materials, installation and training are clarified in a single plan.
The result for your business: The initial scope becomes clearer, the transition to production becomes more planned, operating expenses become more predictable, and technical support becomes more available.
Discuss your machine needs →COMPATIBLE PRODUCTION ORDER
The machine is with its original mold and control system prepared together
The parts of the machine, electrical system, mold and control system are prepared in harmony with each other. Once the production settings are completed, it is tested with the selected product and real raw material.
Measurement and setting consistency in molds
The new machine is tested under real production conditions after installing the original die set and completing centering, heat, pressure, feeding and timing settings. These values constitute the factory default settings of the machine.
In this way, the risk of loss of adjustment, decrease in production speed, unplanned stoppage and increase in wastage that can be caused by an incompatible mold change is reduced. Production progresses more regularly and it becomes easier to control costs.
SAME PRODUCT GROUP
Related machines compare
Paper Cup Machines

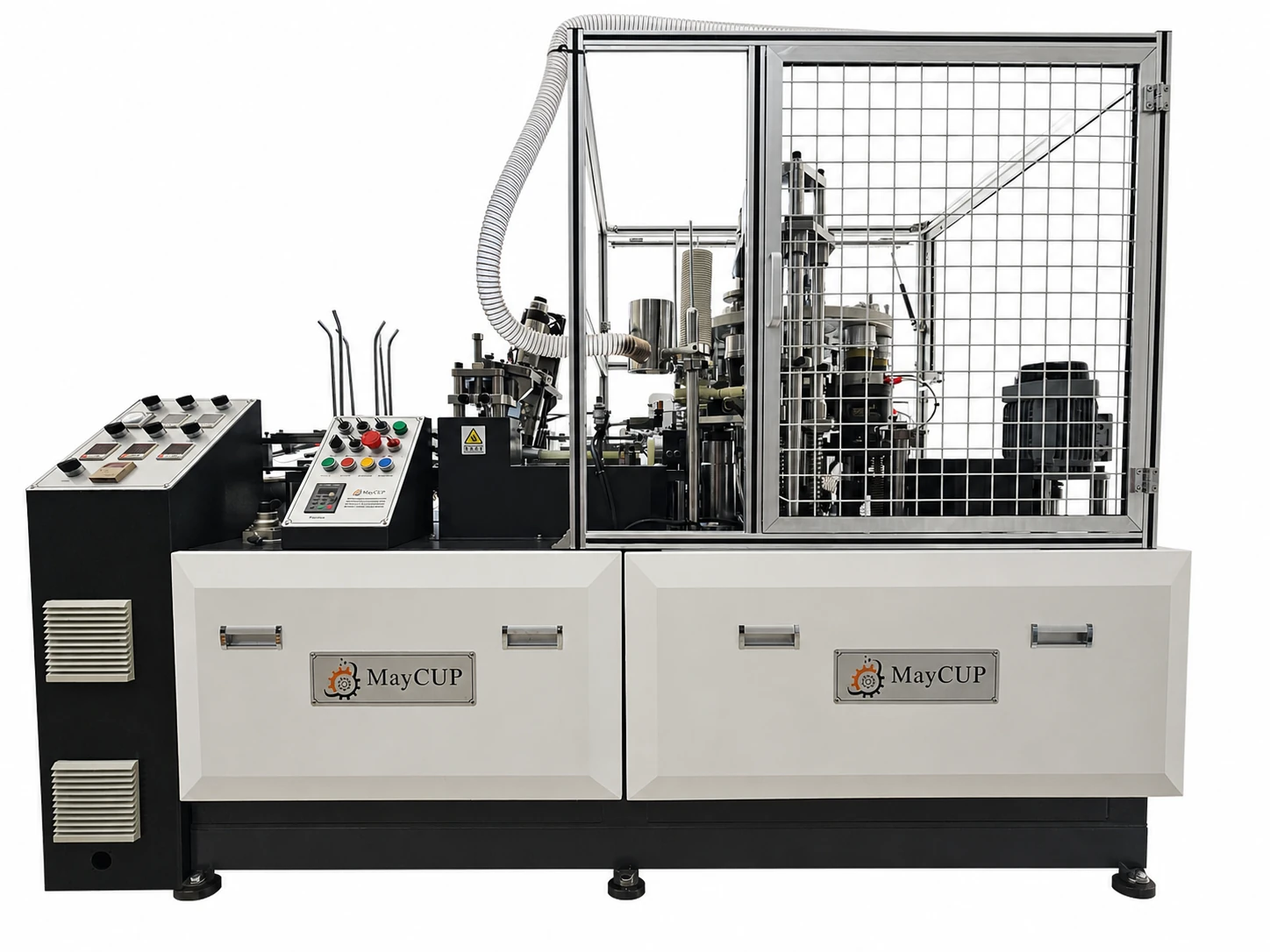

MayCUP MYC110
With its structure that takes up little space and does not require an external compressor, it eliminates compressor purchasing, electricity and maintenance expenses; It offers a strong start to businesses aiming for more controlled initial investment and lower production costs.
Check out the model →
Paper Cup Machines

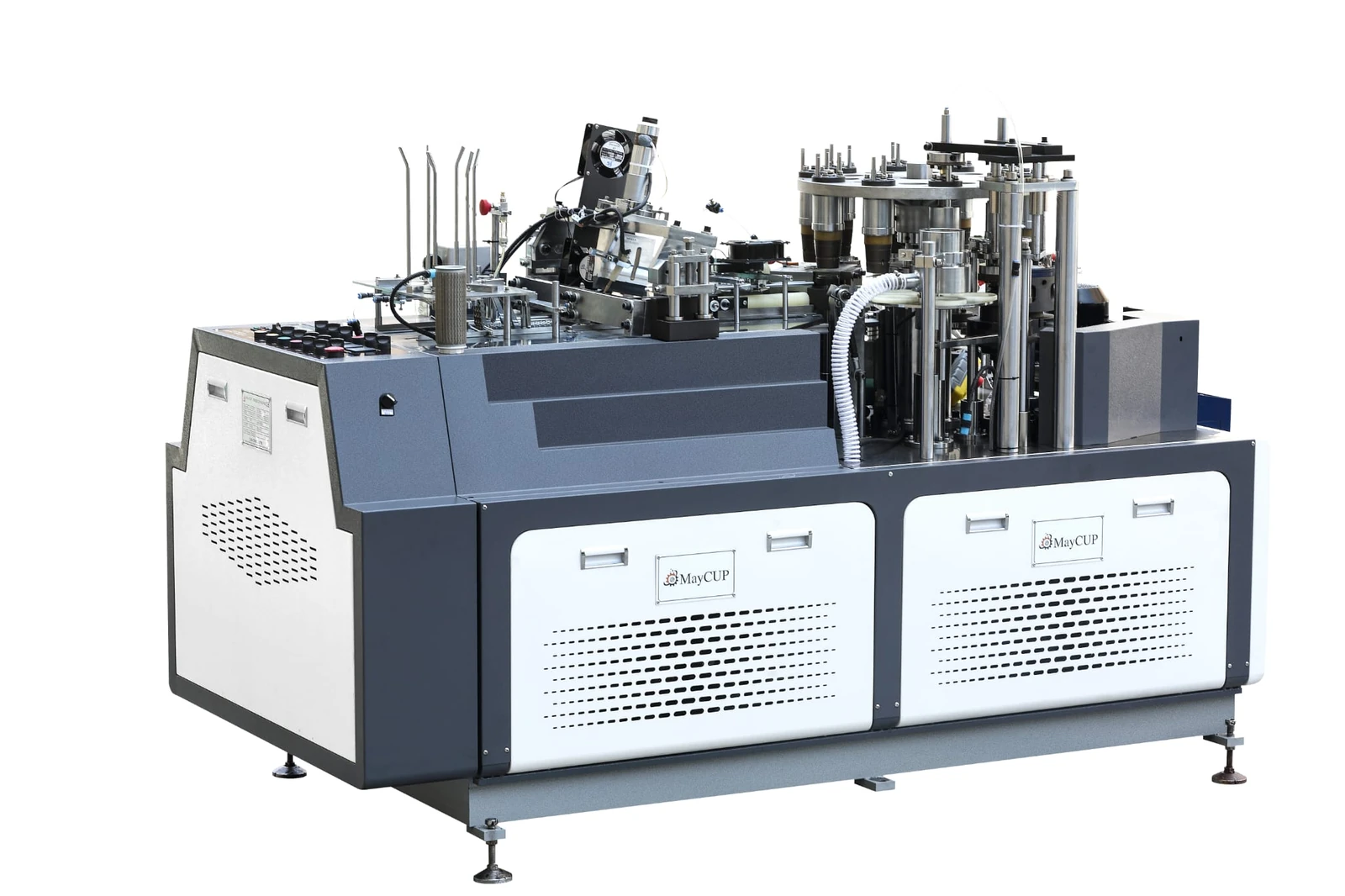

MayCUP MYC120
