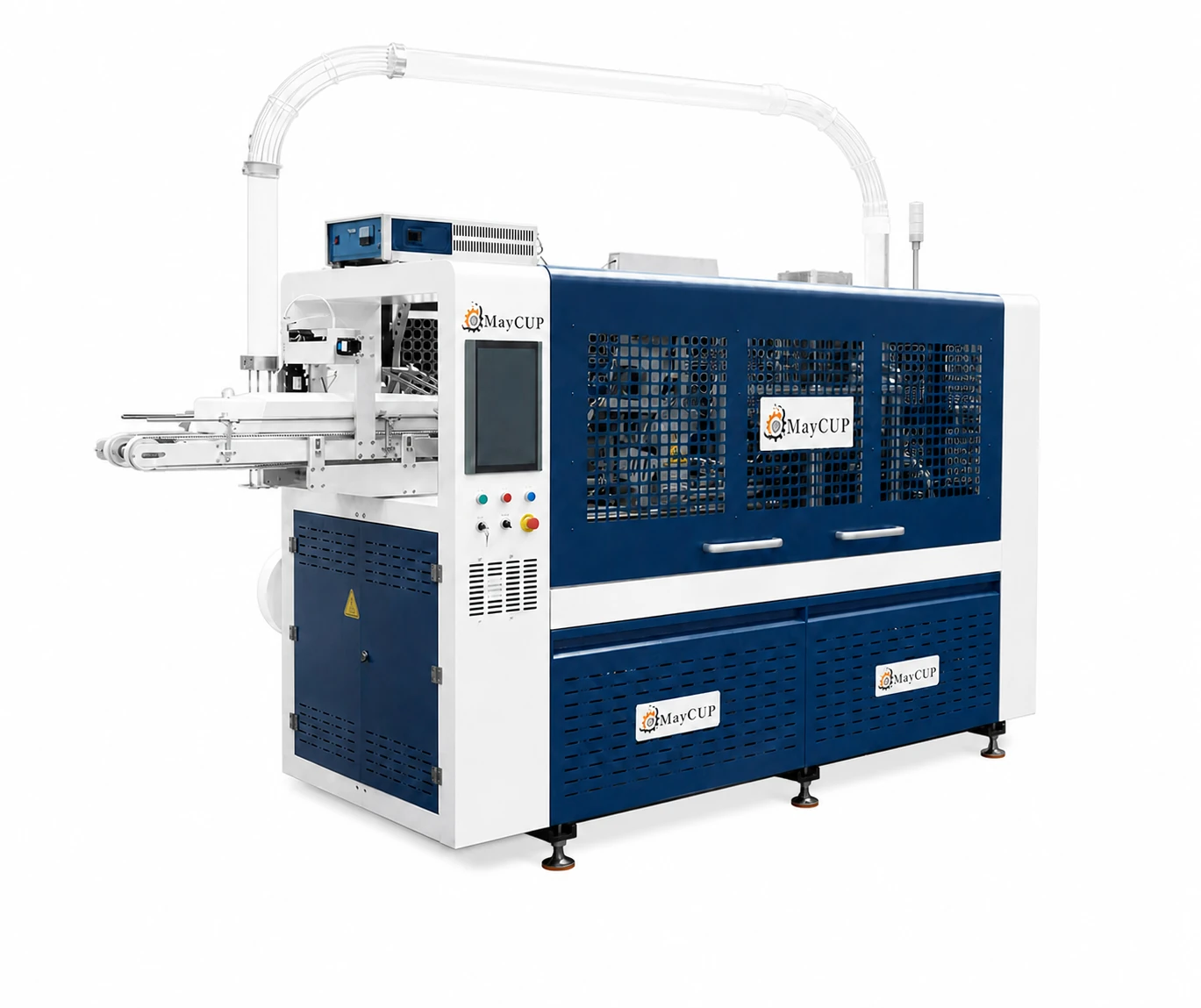

MayCUP MYC170 paper cup machine
It combines very high capacity with precise motion control through the harmonious operation of nineteen servo motors; It was developed for investments that require speed and order in mass production.
145–200 pcs/minSpecifications are clearSpeed, product range, engine, mold and compressor information
Critical parts capabilityTechnical structure that can determine and produce the right part
On-site installation and trainingTesting and practical operator training with real raw materials
One-stop production planMachinery, equipment, raw materials, installation and support
FULL TECHNICAL INFORMATION
MayCUP MYC170 technical specifications
MYC170; It was developed for ultra-high capacity production with 2–16 oz product range, 145–200 cups/minute regular capacity, 19 full servo motors, PLC controlled full automation and faulty cup sorting system.
Mold Size Range2–16oz
Regular Production Rate145–200 pieces/min / 8,700–12,000 pieces/hour
Engine Type19 full servos
Total Power38 kW
Air Pressure Requirement0.6 MPa · 0.7 m³/min
Machine Size3780×1820×2150mm
Processable Paper Weight160–350 g/m² PE
Control TypePLC control, full automation
COMPLETE TECHNICAL TABLE
All technical specifications
| Mold Size Range | 2–16oz |
|---|---|
| Side Paper Pasting | Ultrasonic |
| Side Paper Preheating System | Yes · 1 piece |
| Processable Paper Weight | 160–350 g/m² PE |
| Regular Production Rate | 145–200 pieces/min / 8,700–12,000 pieces/hour |
| Working Voltage | 380V 50Hz |
| Total Power | 38 kW |
| Engine Type | 19 full servos |
| Weight | 3,600 kg |
| Machine Size | 3780×1820×2150mm |
| Air Pressure Requirement | 0.6 MPa · 0.7 m³/min |
| Number of Cup Molds | |
| Side Paper Suction System | Suction with 9 XL suction cups |
| Base Adhesive Number of Nests | 1 air-assisted, 2 extra powerful ceramic heaters, 3 in total |
| Automatic Lubrication System | No need for lubrication |
| Side Paper Silicone Lubrication System | Automatic |
| Control Type | PLC control, full automation |
| Base Paper Waste Cutter with Conveyor | Including |
| Base Paper Feeding | Full servo electric motor |
| Security Framework | full |
| Mouth Rolling System and Number of Tables | 2 |
| Remote Access via Wi-Fi | Yes |
| Sorting Faulty Glasses | Yes |
| Side Paper Wetting Function | Yes |
Speed information: The values are not maximum test speeds, but are valid under suitable material, correct adjustment and regular maintenance conditions. are regular production rates. Maximum speeds may be higher. Actual production speed may vary depending on product size and material properties.
Technical specifications are reconfirmed in the written offer according to product and project conditions. Optional equipment is determined according to the scope of the offer.
FROM TECHNICAL SPECIFICATION TO PRODUCTION SUPPORT
Machine knowledge, installation, training and technical support in one place
See technical specifications clearly; Get access to critical parts, on-site installation, operator training and startup needs from the same team.
Reach the source when you need parts
Ability to produce critical parts and know their technical dimensions; It makes it easier to identify the right part, plan maintenance and maintain production continuity.
Receive the machine ready for production
Installation, connection checks and testing with actual raw material are completed at your facility. Your operator learns usage, adjustment, cleaning and basic maintenance on the machine.
Reduce missing items and supply confusion
Machinery, molds, auxiliary equipment, facility connections, initial raw materials, installation and training are clarified in a single plan.
The result for your business: The initial scope becomes clearer, the transition to production becomes more planned, operating expenses become more predictable, and technical support becomes more available.
Discuss your machine needs →COMPATIBLE PRODUCTION ORDER
The machine is with its original mold and control system prepared together
The parts of the machine, electrical system, mold and control system are prepared in harmony with each other. Once the production settings are completed, it is tested with the selected product and real raw material.
Measurement and setting consistency in molds
The new machine is tested under real production conditions after installing the original die set and completing centering, heat, pressure, feeding and timing settings. These values constitute the factory default settings of the machine.
In this way, the risk of loss of adjustment, decrease in production speed, unplanned stoppage and increase in wastage that can be caused by an incompatible mold change is reduced. Production progresses more regularly and it becomes easier to control costs.
